Embedded Configuration

Administrators can create customized versions of MTPexpedat which are pre-configured with certain default or locked settings.  This can be used to assist novice users with setup or limit user access to potentially disruptive settings.  For example, if you are running your server on a port other than 8080, you may wish to change the default server port to match that of your server.

None of the performance related settings require adjustment in a typical installation.  Incorrect settings may severely degrade performance or disrupt the network.  Take the time to understand what these Settings do before experimenting with them.

To create a custom configured MTPexpedat, first make a copy of the application binary and change its name.  Then drag the MTPexpedat copy onto the DropDat master application.  The Windows version of DropDat must be used to edit the Windows version of MTPexpedat, and the Mac version of DropDat must be used to edit the Mac version of MTPexpedat.

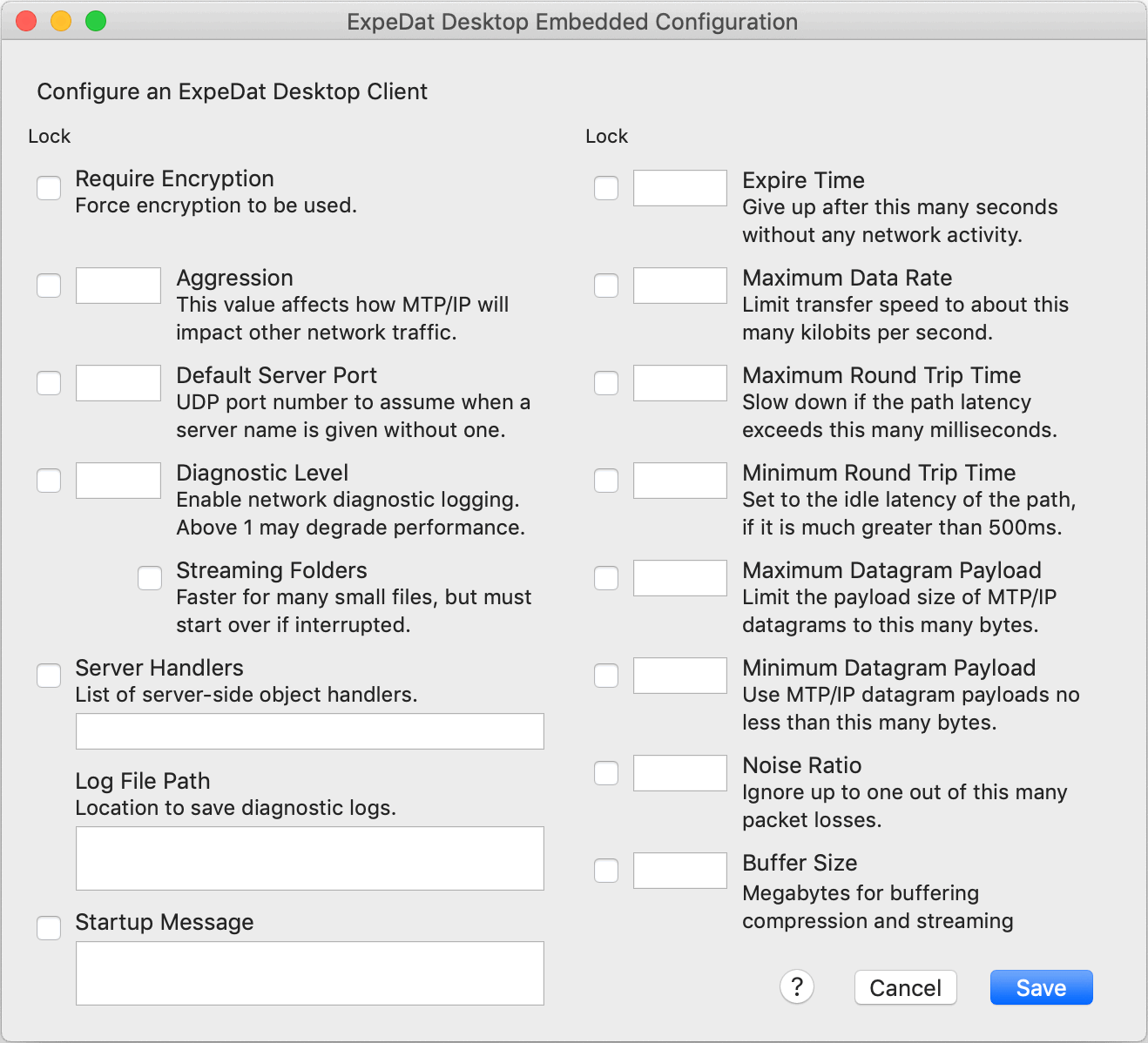

If any settings are already embedded in that application instance, they will be displayed.  The example below shows settings for a fresh (unconfigured) copy of MTPexpedat.

DropDat MTPexpedat Dialog

The chapter about distributing DropDat droplets also applies to pre-configured MTPexpedat applications.  Note that Mac OS X MTPexpedat.app bundles must be copied or compressed using Apple software to ensure that both the Gatekeeper signature and embedded settings are preserved.


Values entered into the text fields will be recorded in the MTPexpedat client executable as defaults.  Users will be able to view these settings using the Options dialog, and may change them unless they are locked.  One exception is "Startup Message" which cannot be changed from within MTPexpedat itself.

Locking Settings

Clicking the checkbox next to a setting will prevent the user from changing this value via the Options dialog.  You can lock a setting without specifying a value, in which case the application default will be used.


Remember that the settings you create here may not be appropriate for all network environments.  You may wish to provide end-users with multiple configurations for different use scenarios, and name them appropriately.

If you set Log File, remember that it will be necessary to periodically clean out the log file or it may grow very large.  Make sure you choose a pathname that you know will exist on the end-user's system.

Settings are embedded into the application executable and only apply to that executable.  End-users running a different copy of MTPexpedat will be subject to that copy's settings.
